ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

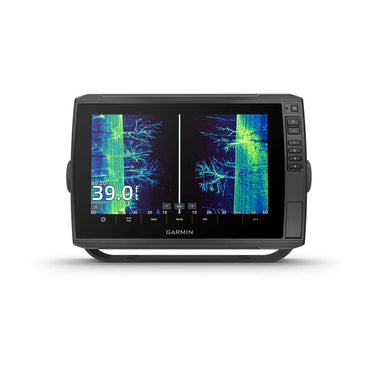

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
| General | |
|---|---|
| Dimension | 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) |
| Weight |
4.0 lbs (1.8 kg) |
| Water rating |
IPX7 |
| Touchscreen | yes |
| Display Type | WXGA, IPS |
| Display Size | 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) |
| Display resolution | 1280 x 800 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with keyed assist |
| Maps & Memory | |
|---|---|
| Accepts Data Cards |
2 microSD cards |
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | yes |
| GLONASS | yes |
| Galileo | yes |
| BeiDou | yes |
| Has built-in receiver | yes |
| Receiver |
10 Hz |
| NMEA 2000 Compatible | yes |
| Supports WAAS | yes |
| Supports multi-band, multi-constellation GPS | yes |
| Built-in Maps | |
|---|---|
| Built-in Auto Guidance+ | yes |
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Tide tables | yes (see Additional) |
| Optional Map Support | |
|---|---|
| BlueChart g3 | yes |
| BlueChart g3 Vision | yes |
| LakeVü g3 | yes |
| LakeVü g3 Ultra | yes |
| Garmin Navionics+™ | yes |
| Garmin Navionics Vision+™ | yes |
| TOPO 100K | yes |
| Standard Mapping | yes |
| Garmin Quickdraw Contours | yes |
| Chartplotter Features | |
|---|---|
| AIS | yes |
| DSC | yes |
| Supports Fusion-Link™ compatible radios | yes |
| ActiveCaptain® compatible |
yes |
| Sailing Features | yes |
| Electrical Features | |
|---|---|
| Power Input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 2.3 A |
| Maximum current draw at 12 Vdc | 5.0 A |
| Maximum power usage at 10 Vdc | 34 W |
| Sonar Features | |
|---|---|
| Displays sonar | yes |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | yes |
| LiveScope | yes |
| Connections | |
|---|---|
| NMEA 2000® ports | 1 |
| Garmin Marine Network Ports |
2 (large connector) |
| 12-pin transducer ports | 12-pin scanning sonar |
| ANT® (Connectivity) | yes |
| Garmin Wi-Fi network (local connection) | yes |
| Additional | |
|---|---|
