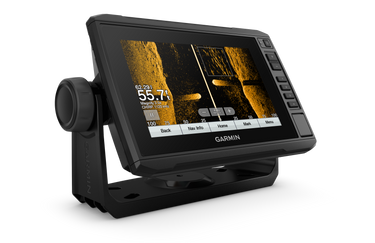

Garmin ECHOMAP UHD 73sv, US w/GT56

$899.99
Only a Few Left
AFSH004
753759264413
-
+

Guaranteed Safe Checkout

Amazon American Express Apple Pay DiscoverGoogle Pay MastercardPayPalVisa

Take fishing to the next level.

SONAR SUPPORT

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

VIVID COLOR PALETTES

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

OPTIONAL TRANSDUCER BUNDLE

Select the transducer bundle to add a GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.

PRELOADED MAPPING

Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 18,000 lakes with up to 1’ contours.

QUICKDRAW CONTOURS

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect™ app3.





Boat connected.

NETWORK CAPABLE

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, the 7” and 9” models can share information — such as sonar, user data and charts — with them.

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to your compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast sensor — and more from one screen.

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data and more1.

FORCE™ TROLLING MOTOR COMPATIBILITY

Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.

ENGINE CONNECTIVITY

Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.


 SPECIFICATIONS

Physical & Performance

Display size 6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
Display resolution 400 x 800 pixels
Physical dimensions 9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
Receiver

5 Hz

Water rating

IPX7

Weight

1.7 lbs.(0.77kg)

Mounting options Bail or flush
Display type WVGA display
Antenna Internal or external over NMEA 2000

Maps & Navigation

Preloaded maps

LakeVü g3 (inland maps)

Accepts data cards

1 microSD™ card; 32 GB maximum size

Routes 100
Track log 50,000 points; 50 saved tracks

Features

ClearVü

Yes with CHIRP (built-in)

Waypoints

5,000

Transmit power 500 W (RMS) / 4,000 W (peak to peak)
NMEA 0183 compatible Yes
Dual-beam (77/200 kHz) sonar capable Yes
Supports DSC (displays position data from DSC-capable VHF radio) Yes
NMEA 2000® compatible Yes
ActiveCaptain compatible Yes
Sonar recording Yes
Garmin Marine Network™ ports

1 Panoptix™ port

Garmin Sonar compatible Yes
GSD™ Black Box sonar support No
Sonar history rewind Yes
Garmin SmartMode compatible (customizable monitor presets) No
Dual-frequency (50/200 kHz) sonar capable Yes
Maximum depth

2,300 ft @ 77 kHz, freshwater

1,100 ft @ 77 kHz, saltwater

(depth capacity is dependent on water bottom type and other water conditions)

SiriusXM™ Weather & Radio compatible No
Wireless connectivity

Yes

Water temperature log and graph Yes
GCV™ Black Box sonar support Yes
Wireless mouse compatible No
NMEA 0183 input ports

1

J1939 Compatible No
Supports AIS (tracks target ships position) Yes
Polarized support No
Garmin Meteor™ Audio System compatible No
Wireless remote compatible No
Supports FUSION-Link™ compatible radios No
Transducer pin numbers 12
Bottom lock (shows return from the bottom up) Yes
NMEA 0183 output ports

1

Tide tables Yes
Power consumption

15W

Garmin Radar compatible No

WHAT IS IN THE BOX?
  • ECHOMAP UHD 73sv with LakeVü g3 for U.S.
  • GT56UHD-TM transducer
  • Power/data cable
  • Tilt/swivel mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation
